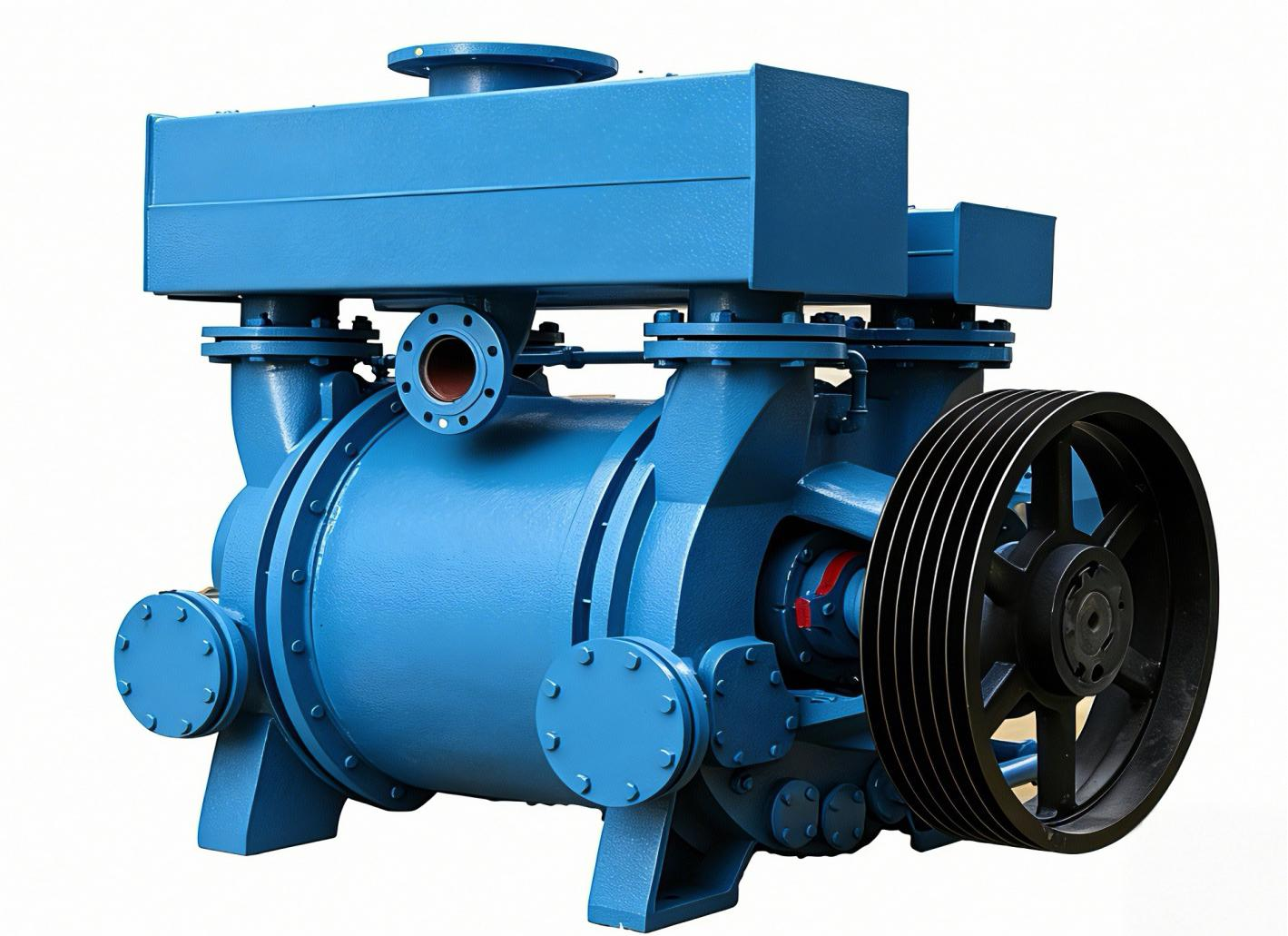

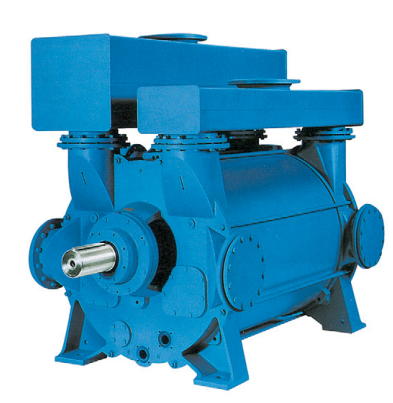

2BE Series Water Ring Vacuum Pumps and Compressors

The 2BE series water ring vacuum pumps and compressors are high-efficiency and energy-saving products developed by integrating advanced foreign technologies.This series of pumps adopts a single-stage and single-acting structure, featuring simple structure, convenient maintenance, reliable operation, high efficiency and energy saving.Compared with the SK and SZ series water ring vacuum pumps, it has obvious advantages such as higher vacuum degree and lower power consumption, making it an ideal alternative to the SK and SZ series water ring vacuum pumps.The unique upper-mounted gas-water separator saves space and effectively reduces noise.

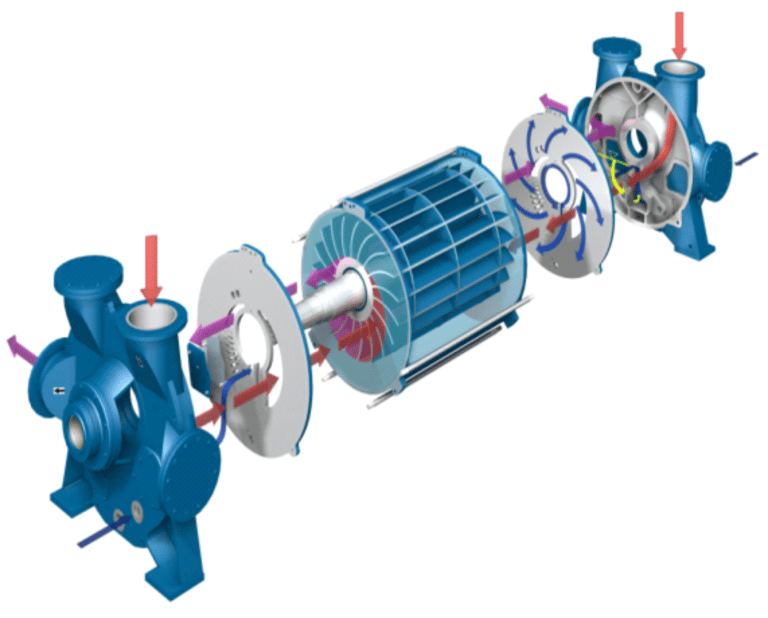

The main structural features of the 2BE series liquid ring vacuum pumps and compressors manufactured by our company are as follows:

◆ All bearings adopt original imported models, ensuring precise positioning of the impeller and high operational stability of the BE series vacuum pumps during operation.

◆ All impellers are made of ductile iron casting or steel plate welding, which fully guarantees the stability of pump impellers under various harsh working conditions and greatly extends the service life of the 2BE series vacuum pumps.

◆ The pump body is entirely fabricated from steel plates to improve the service life of the 2BE series vacuum pumps. As one of the most vulnerable wearing parts, all shaft sleeves of 2BE series pumps are made of high-chromium stainless steel, with a service life 5 times longer than that of ordinary materials.

◆ For belt drive configuration, standard high-precision taper bushing pulleys are adopted, featuring reliable operation, easy disassembly and long belt service life.

◆ For direct-coupled drive configuration, standard high-strength flexible couplings are equipped, with polyurethane elastic components to ensure stable, reliable operation and prolonged service life.

◆ The uniquely top-mounted gas-water separator saves installation space and effectively reduces operating noise. All castings are produced by resin sand casting with excellent surface finish.

◆ No putty finishing is required on casting surfaces, enabling the 2BE vacuum pump to achieve optimal heat dissipation performance.

◆ Optional imported mechanical seals are available to ensure zero leakage of the 2BE series vacuum pumps during long-term continuous operation.

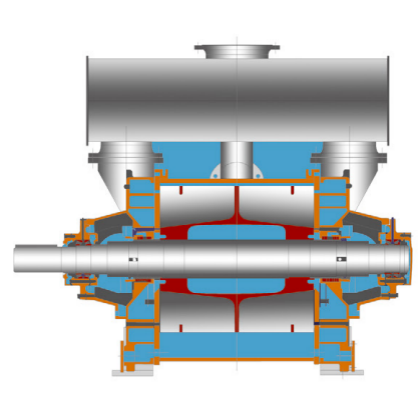

◆ The inner wall of the pump body adopts an approximate elliptical profile to deliver the optimal pumping performance.
