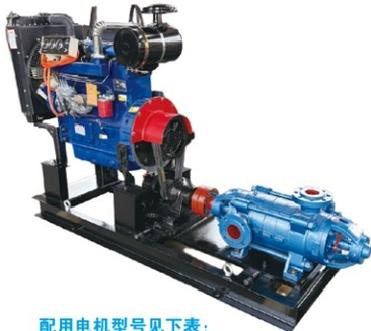

DG type high pressure boiler feed pump/DG type water injection pump

This series of pumps are single suction,multistage,segmental centrifugal pumps for high pressure boiler feed water or oil field water injection medium sized thermal power plants,with a maximum medium temperature≤160°.The boiler feed water pump has its suction and discharge ports both vertical upwards,and thection port of the injection pump is on the side.

The rotor of the pump is supported by bearings at both ends,which are forced lubricated by auxiliary oil pumps,and the chamber can be connected to cooling water.

Main parts material:water inlet section,middle section,water outlet section-cast steel or stainless steel,impeller,guide vane -stainless steel.
