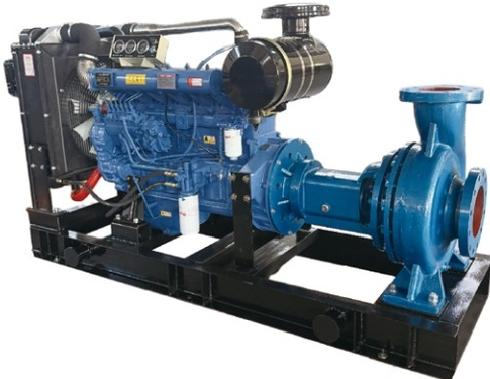

IS Series Fixed Diesel Engine Horizontal Centrifugal Pump
IS series pumps are single-stage, single-suction cantilever centrifugal pumps, designed for delivering clean water and liquids whose physical and chemical properties are similar to water and contain no solid particles. IS type pumps are suitable for media with a temperature below 80℃. ISR type pumps are applicable for conveying hot water with a temperature below 130℃. ISY type pumps are used for transferring light oils such as gasoline and diesel.
The maximum working pressure of this series of pumps is 1.6 MPa, i.e. discharge pressure;suction pressure pump head is than 1.6 MPa, and the static pressure test of the pump body is 2.4 MPa. If the pressure of the pump system exceeds 1.MPa,please indicate it when ordering.
This series of pumps can transport clean water with a temperature not higher than 80℃ or liquids with physical and chemical properties to water.If a cooling system is added to the pump cover,it can transport media with a temperature of 85°℃~130℃.If the conveying contains small particles,please indicate it when ordering.
The vertical single-stage radial flow pump of ISG type is designed and optimized on the basis of IS type pump and combined with the characteristics of pump.Itis mainly used as a booster in pipeline system. In a variety of different applications,it can completely replace IL and IS type pumps. It is suitable for industrial and water supply and drainage,high-rise building water tower booster water supply,fire booster,pipeline booster,long-distance water supply,heating,refrigeration cycle and other occasions Considering that the hydraulic model of this series of pumps is completely adopted from the hydraulic model of IS type pump,the high-efficiency and energy-saving characteristics of IS pump are maintained In addition,the pump and motor are elastically connected,the vertical installation,and the seal is mechanically sealed.The support is selected with advanced shock absorption device,so this of pumps has the advantages of stable and reliable operation,low noise,and wide range of use.
